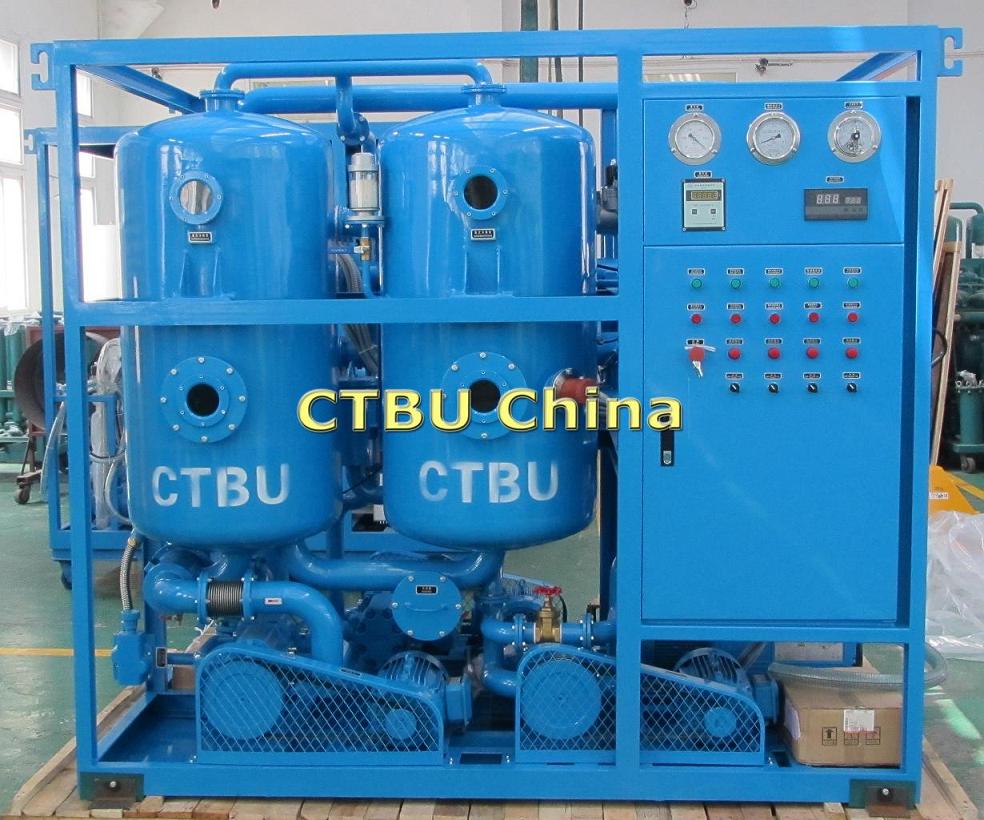

Model ZLS Double Stage Vacuum Transformer oil Purification Machine
1-To increase and maintain the oil's dielectric strength, i.e. Breakdown voltage;
2- To dehydrate of free and soluble water, free and dissolved air and gases;
3-To filtrate out particles, impurities and other dirties in the oil;
4-Vacuum drying the transformer and vacuum filling transformer oil.
5-Different designing as per client's different requirements: Vertical vacuum chamber, 'T' shape vacuum tank, Horizontal vacuum chamber, etc.
Technical Parameters:
2.01 Model ZLS Double stage Vacuum Type (Model ZLS-50, Model ZLS-100, Model ZLS-150, ZLS-200, etc.)
2.02 Flow rate 3000Liter/Hour~30,000Liter/Hour
2.03 Working Vacuum 10~100 Pa
2.04 Ultimate Vacuum ≤ 5 Pa
2.05 Working Pressure ≤ 0.5Mpa
2.06 Operation duty Continuous operation Or Batch operation
2.07 Oil Temperature Range -5~80Deg.cent (average temperature is 40~65)
2.08 Dielectric Strength (BDV) ≥ 75KV (after treatment)
2.09 Water content ≤ 3PPM (after treatment)
2.10 Gas Content ≤ 0.1% (after treatment)
2.11 Particle/residuals size Less than 1um (no carbon) (after treatment)
