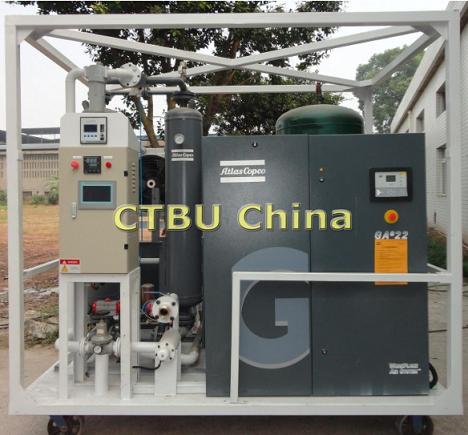

Model ZAD Transformer Dry Air Generator Plant
Function:
When operation and maintenance electrical equipments, such as transformer and reactor, are quite easy to be moistened. Model ZAD air dryer supplies dry air to solve this problem, anoxia asphyxia will never happen to maintenance people. It’s more safe, reliable, convenient and economical than by using bottled gas. It is not influenced by weather conditions, especially for overnight working, just to fill 0.02-0.03MPa dry air into equipment after sealing all flanges. Electric equipments Oil filling and oil drainage is unnecessary, which can shorten working period and improve maintenance effect. During oil filtration, it can fill dry air into oil equipment block and oil to improve oil insulation and decrease the moisture.
Model ZAD air dryer adopts low pressure oil-less compressed system and low-temperature condensation moisture removal technology, with the merits of small dimension, light weight, easy operation, energy saving and high reliability.
Technical Spec:
Model |
ZAD-60 |
ZAD-100 |
ZAD-150 |
ZAD-200 |
ZAD-300 |
Air supplied(m3/h) |
60 |
100 |
150 |
200 |
300 |
Type |
Automatic Operation & Fully Metal Closure |
||||
Dew point |
≤-50 ~ |
||||
Working pressure |
0.6-1.0MPa |
||||
Relative humidity |
≤0.01-0.05% |
||||
Air Temperature |
10 |
||||
Air pressure |
0.01-0.1MPa |
||||
Refrigeration |
R22 |
||||
Power required |
380V/3Ph/50HZ (For our |
||||
Total power (KW) |
7 |
12 |
17 |
22 |
37 |
Size (L*W*H) mm |
1400 850 1500 |
1700 1250 1850 |
1900 1450 1900 |
2100 1700 2000 |
2250 1750 2150 |
Pipe diameter (mm) |
25 |
32 |
40 |
50 |
50 |
Weight (kg) |
620 |
1200 |
1500 |
1900 |
2100 |
**For more precise details, please contact CTBU Sales.
