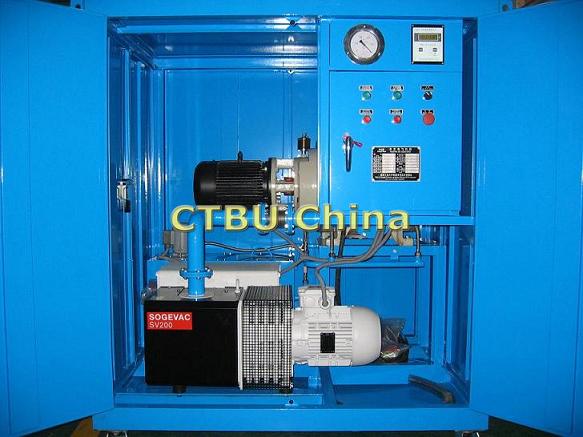

Components:
Roots Pump; Vacuum Pump; Digital Vacuum Gauge (NOT mechanical gauge); Stainless Steel Anti-shake connectors; Control Panel; Frame; Wheel/skids; etc.
Features:
1) High vacuum level with Roots and Vacuum pump together;
2) Installs with digital vacuum gauge to indicate high precise vacuum;
3) Portable and movable, low noisy.
Technical Index:
|
Model |
ZLH-30 |
ZLH-70 |
ZLH-150 |
ZLH-300 |
ZHL-600 |
ZHL-1200 |
|
Speed (L/s) |
30 |
70 |
150 |
300 |
600 |
1200 |
|
Ultimate vacuum (Pa) |
5 |
5 |
3 |
3 |
2 |
2 |
|
Work vacuum (Pa) |
130 |
125 |
110 |
105 |
100 |
80 |
|
Power (KW) |
1.5 |
2.9 |
5.4 |
7.2 |
11.2 |
16.7 |
|
Inlet DIN (mm) |
φ38 |
φ50 |
φ76 |
φ89 |
φ125 |
φ150 |
|
Outlet DIN (mm) |
φ25 |
φ40 |
φ40 |
φ65 |
φ80 |
φ80 |
|
Power supply (V) |
380 |
380 |
380 |
380 |
380 |
380 |
|
HZ |
50 |
50 |
50 |
50 |
50 |
50 |
|
Power Cable ≥mm2 |
1 |
1.5 |
3 |
4 |
6 |
8 |
|
Weight (kg) |
260 |
450 |
580 |
980 |
1350 |
2800 |
|
Size (cm) |
72×50×115 |
95×65×130 |
110×70×148 |
135×80×156 |
135×90×168 |
155×110×180 |
**For more precise details, please contact CTBU Sales.
