Application:

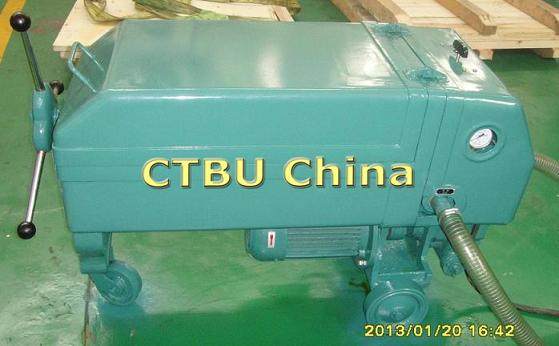

Model LY Plate-Press oil purification device is mainly used to purify transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil etc. It can remove water and particles from oil, if adopting stainless steel body, the machine can be as the vegetable oil purifier. The Plate-Press oil purification device is mainly composed of filtering bed, oil pump and primary-filtering components. Plate-Press oil purification device uses filter paper as filter medium, different filtration precisions choosing different filter paper. Series PF Plate-Press oil purification device is high filtration precision, simple structure, easy operation, low operation cost.
Model LY Plate-Press oil purification device is very simple, very popular. And the Particles size can achieve less than 0.3 micrometer.
Technical Parameters:
Index name |
Unit |
LY30 |
LY50 |
LY100 |
LY125 |
LY150 |
LY200 |
LY300 |
|
Flow rate |
L/H |
1800 |
3000 |
6000 |
7500 |
9000 |
12000 |
18000 |
|
Working pressure |
MPa |
0-0.3 |
|||||||
Filtering size |
≥ m 2 |
0.48 |
0.6 |
1.35 |
1.55 |
2 |
2.5 |
3.1 |
|
Plate dimension |
mm |
180*180 |
280*280 |
||||||
Pressing way |
Manual |
||||||||
Filter ring quantity |
14 |
18 |
39 |
47 |
24 |
29 |
34 |
||
Filter plate quantity |
15 |
19 |
40 |
48 |
25 |
30 |
35 |
||
Power |
KW |
1.1 |
2.2 |
3 |
5.5 |
||||
Inlet caliber |
1 |
1 1/4 |
2 1/2 |
||||||
Outlet caliber |
3/4 |
1 1/4 |
2 1/2 |
||||||
Dimension |
L |
mm |
800 |
900 1000 |
1100 |
1200 |
|||
W |
mm |
300 |
440 |
||||||
H |
mm |
720 |
840 |
1000 |
|||||
Filter paper |
mm |
180*180 |
280*280 |
||||||
Weight |
kg |
50 |
55 |
85 |
110 |
150 |
175 |
190 |
|
Particles size |
≤ 1-3 µ m |
**For more precise details, please contact CTBU Sales.
