Model JJY Oil Water Coalesce Separation Machine

Location：Home > Products
Oil Treatment

infomation:

1-Oil water separation and filtering;
2-Demulsifying;
3-Applies to Fuel oil, etc.

Description

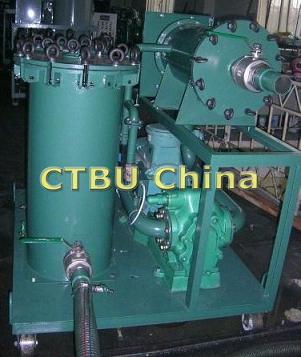

Model JJY Oil Water Coalesce Separation Machine

　　 This machine JJY integrates fine filter, high efficiency demulsification and dehydration into one body. This machine, which can remove large of water without heating, creates the fastest dehydration speed in domestic at present. This machine can quickly separate water from the oil, which even contains half water, to attain cleanness of NAS six grade. Convenient using with the go-cart model designed. This machine is suitable for treating light oil with high water content .

Features：

1. JJY adopts special oil water separator which requires no heating, offering more than 20 times dewatering efficiency over other types of purifiers.

2. As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.

3. Easy-to-operate, water can be discharged online automatically without the presence of duty operators.

4. Low operation cost, 20-40% lower than vacuum purifier, centrifugal purifier and filter press.

Technical Parmaeters:

Name		Unit	JJY-10	JJY-20		JJY-30		JJY-50		JJY-80		JJY-100
Flow		L/min	10	20		30		50		80		100
Working Pressure		Mpa	≤ 0.3
Water Content		PPM	≤100
Cleanliness		NAS	≤6
Working Noise		dB(A)	≤65 ～ 75
Power		KW	0.75		0.75		1.1		2.2		3		3.6
Net Weight		Kg	80		90		105		135		150		185
Overall Dimension	L.	mm	700		700		700		850		800		1000
	W	mm	570		570		600		650		650		700
	H	mm	550		600		650		750		800		850
