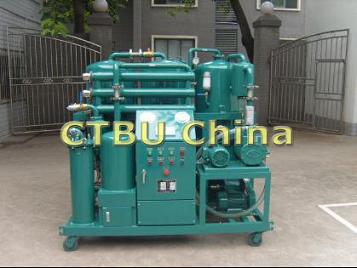

Model TY series purifier solely designed for turbine oil, which adopts a new aggregation and separation technology, is a first Chinese made product aiming at turbine oil's nature of high water content, emulsification, easily emulsifiable, and high impurity content. The product is mainly applied to treatment of turbine oil, which can rapidly and effectively remove the water, gas and impurity in oil, bringing oil back to the specifications of new oil to ensure the a correct running of the unit's regulating and lubricating system, as well as to extend the life time of the unit.

As a result of utilization of the internationally advanced principle of fortified hydrophilic and dehydration, which integrates demulsification, dehydration and precision purification, the product has the capability of on-line break of emulsion, removal of water, acid and impurity which can recover the emulsified turbid turbine oil to limpid and clear oil.

The product is suitable for application to dehydration purification treatment in more depth to turbine oil, hydraulic oil, refrigerating oil, as well as rest of lubricating oil requiring removal of mass water or precision removal of impurity.

Features：
1) Latest Chinese and international process which is an integration of gravity method, evaporation method, aggregation method, vacuum separation and mechanical purification.

2) No emulsification agent is used for break of emulsion, but to apply macromolecule magnetic material with strong capability of emulsification and dehydration.

3) Superior large capacity purification system handling more than 4000 tons. It has an automatic reverse flush ability.

4) Imported parts are used for all electric system, which ensures operation of the equipment with high performance

5) Safe, reliable heating system and optimized piping design ensure that there is no “dead angle” and oil is completely subjected to purification.

6) Deep purification structure, free of maintenance.

7) An advanced infrared liquid level control system, which is fully automatic.

8) On-line oil purification can be carried out at steamer or water turbine of any grades.

9) Low noise.

Technical Parameters:

**For more precise details, please contact CTBU Sales.
