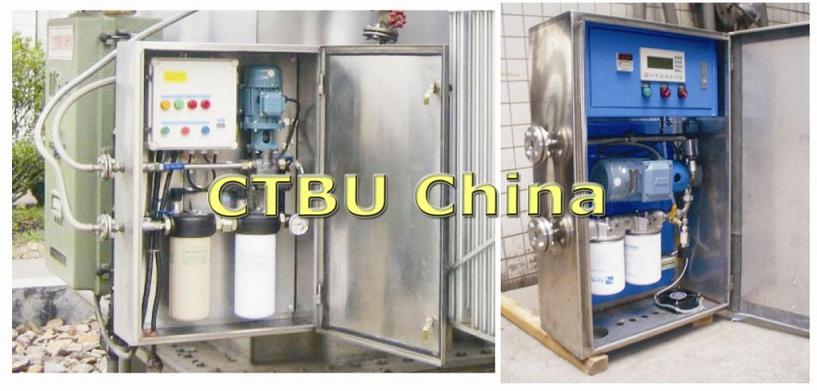

Model ZTC On-line Tap Changer (OLTC) Hot Oil Filtering Device

General:

Model ZTC On-Line Tap Changer Filtration System (Stainless Steel) for the continuous removal of carbon, water, copper and metallic particles in Tap Changers. These contaminants are present in Tap Changers due to arcing contacts during the transfer of loads from tap-to-tap in the tap changer compartments.

Technical parameters:

1-Rated pressure : ≤ 0.5 MPa

2-Oil inlet/ outlet diameter: DN25/DN15

3-Overall dimension (mm): 280(L)*680(W)*1000(H)

4-Weight: 120 Kg

5-Rated flow: 10L/min or optional

6-Motor power: 250W

7-Power supply: 220V-240V, or 110V-125V
