Technical Parameters:
Item |
Unit |
Model JYW Waste Oil Recycling System |
Handling capacity |
Ton/day |
1TPD, 3TPD, 5TPD, 8TPD, 10TPD, 15TPD, 20TPD |
Working pressure |
MPA |
-0.095~0.1 |
Temp. Control range |
℃ |
0~250 |
Working noise |
Db (A) |
≤65~80 |
Power supply |
380V/440V/415V/220V or other options |
|
Heating power |
KW |
48KW, 72KW, 90KW, 120KW, 144KW, 200KW,etc. |
Recovery/regenerate rate |
% |
75%-92% ( depends on your oil’s dirty level) |
Application:

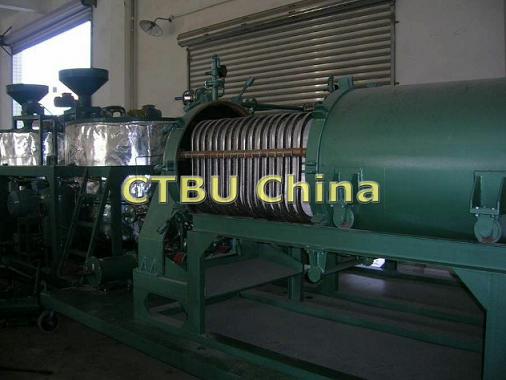

This machine JYW is used to recycle the used motor oil series, such as gasoline engine oil, diesel engine oil, ship oil and so on. Sometimes the oil to be treated has as much as 70% impurities in it, such as aqueous acid, ammonia acid, soot, dust-sand-clay, moisture content, etc.
This equipment takes physical principle methods and chemical additives to treat the oil. It takes special chemical agent for purification.
This Oil Recycling plant is particularly suitable to regenerate internal-combustion engine oil including diesel engine oil, gasoline engine oil and internal-combustion engine oils. It can effectively remove colloid, oxide, acid, pitch, particles, impurities, water, gas in the oil. Specially, It can restore the color of used internal-combustion engine oil and remove the scent rapidly. Additionally ,it is suitable for treating low viscosity lubrication oil and is a de-acid device.
Features:
1. Fine precision filtering material made of stainless steel which is washable type, with excellent mechanical strength and long service life, specially it is anti-erosion and anti-hi-temperature, with high performance of removing fine particles in the contaminated oil.
2. Completely removing water content and harmful gases from the contaminated oil.
3. Upgrading the black color of the treated oil recovered similar as new yellow one while keeping property & function of oil.
4. Manually/automatically removing residual impurities from the machine, which is easy to operate and on the safe side.
5. The mixture of gases drawn out via vacuum system is condensed and dewatered by forced air, which improves the effective output power of the machine and prolongs the service life of vacuum pump;
6. Adopting both functions of heating by electricity and gas, so as to save high electricity cost in some mid-east countries such as Panama, Panama, Jordan, etc.
7. Environmentally friendly, NO acid used during operations.
8. It adopts a physiochemical reaction, which can eliminate the electric charge between polar particulate in waste oil purification, which is gathered into large particles and remove. It is also can remove colloid, bitumen and other compound.
9. Final oil processed from model our machine, with clean yellow color just like new one. Below is one sample for your reference.
